Routes

About Routes

Routes in DIAL are used for communication through registered endpoints in the DIAL Core. They act as a bridging mechanism between the DIAL Core and external applications, facilitating seamless interactions. Once a route with a designated endpoint is set up in DIAL Core, it allows client applications, such as DIAL Chat, to interact with this endpoint. Essentially, DIAL Core functions as an intermediary, handling authentication and authorization between the client and the external application linked to the route.

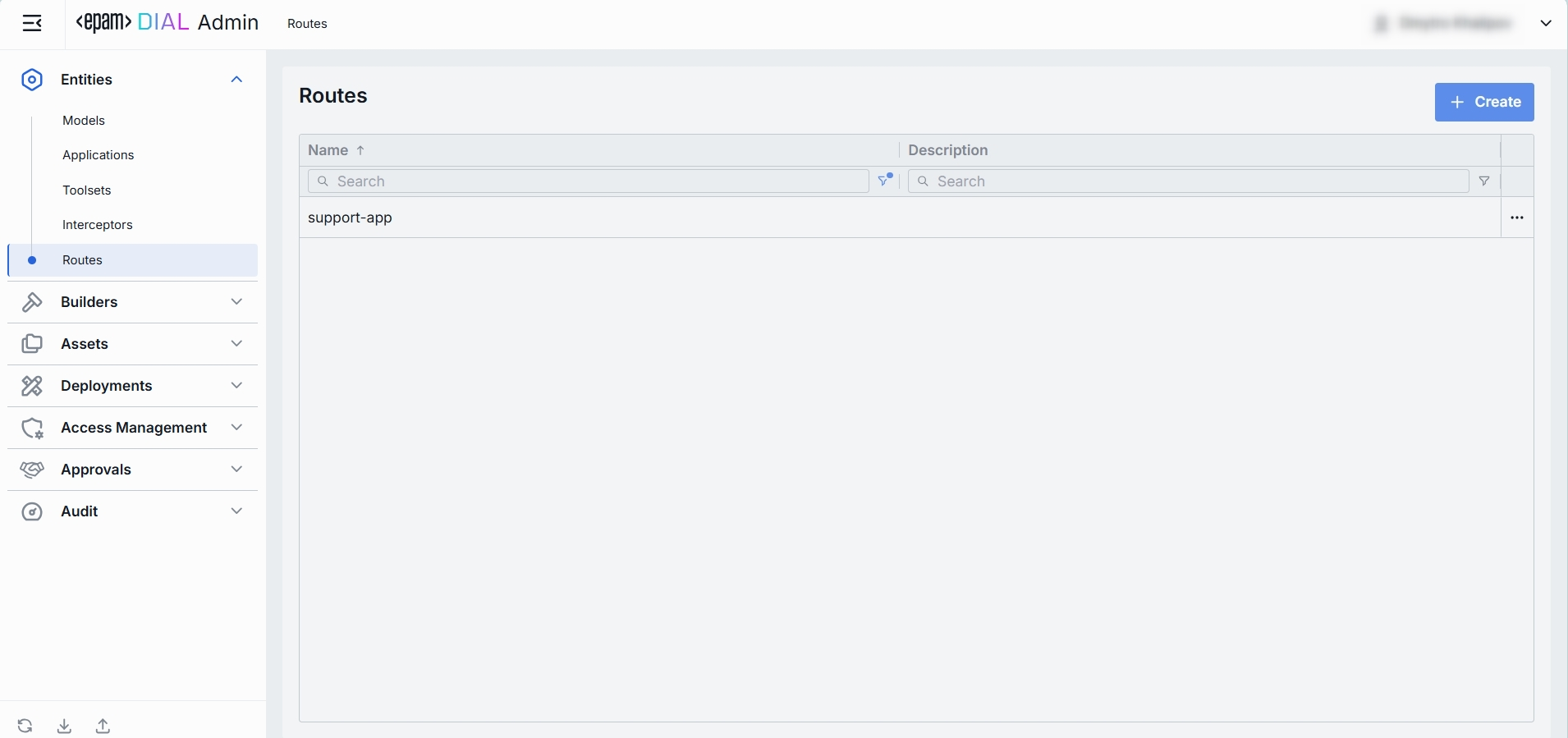

Routes Main Screen

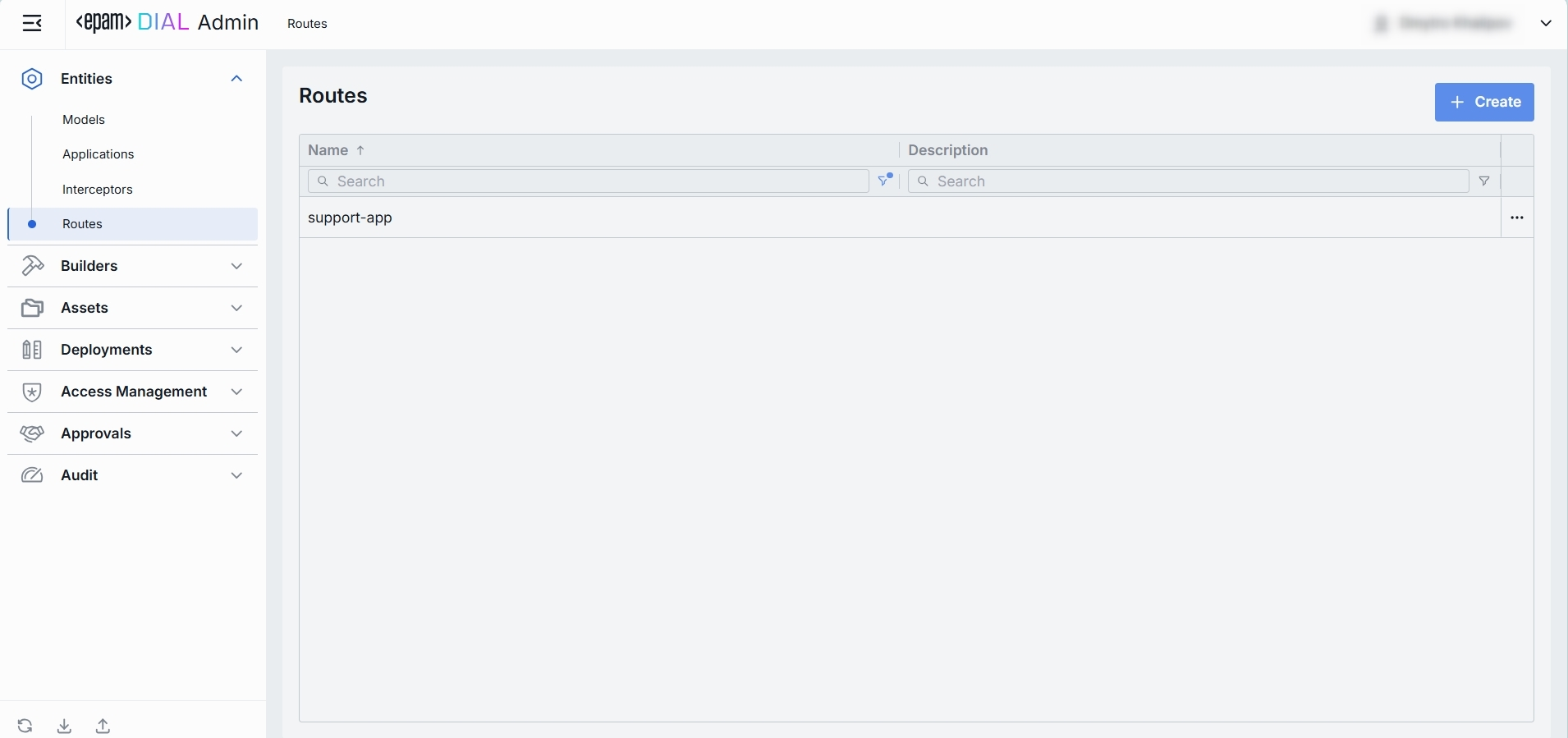

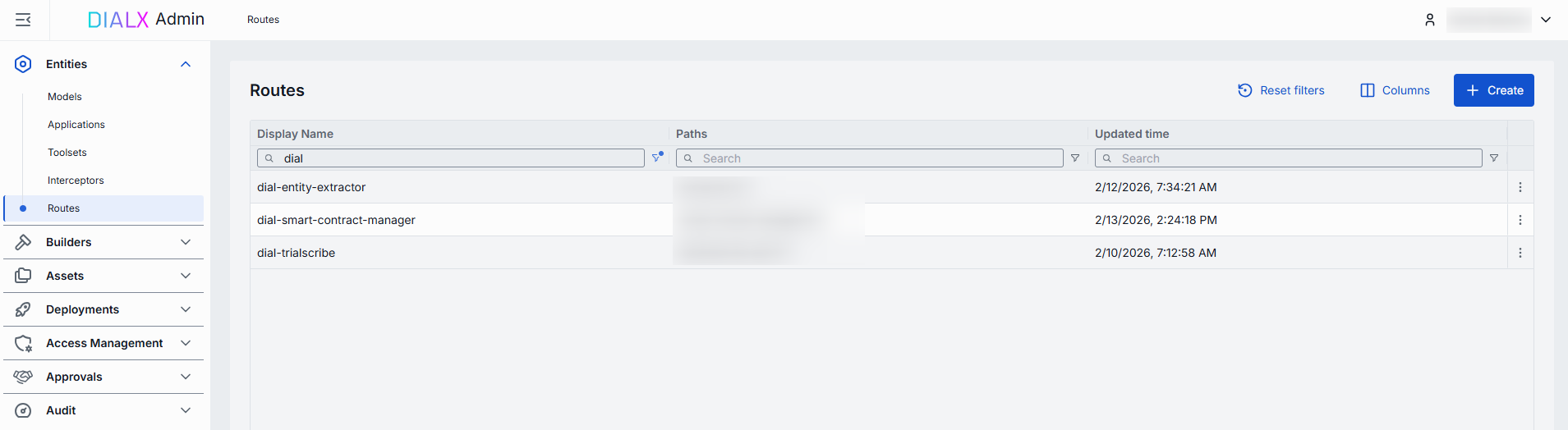

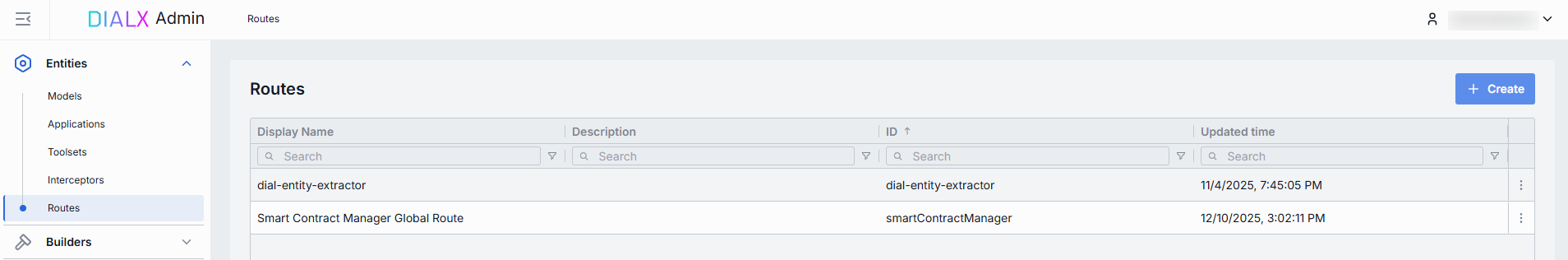

In Routes, you can view, filter, and create new routes.

Routes grid

Field	Definition
ID	This is a unique key under the Routes section of DIAL Admin.
Display Name	A user-friendly name of the Route.
Description	A brief free-text description of the Route's purpose.

Create

Follow these steps to add a new route:

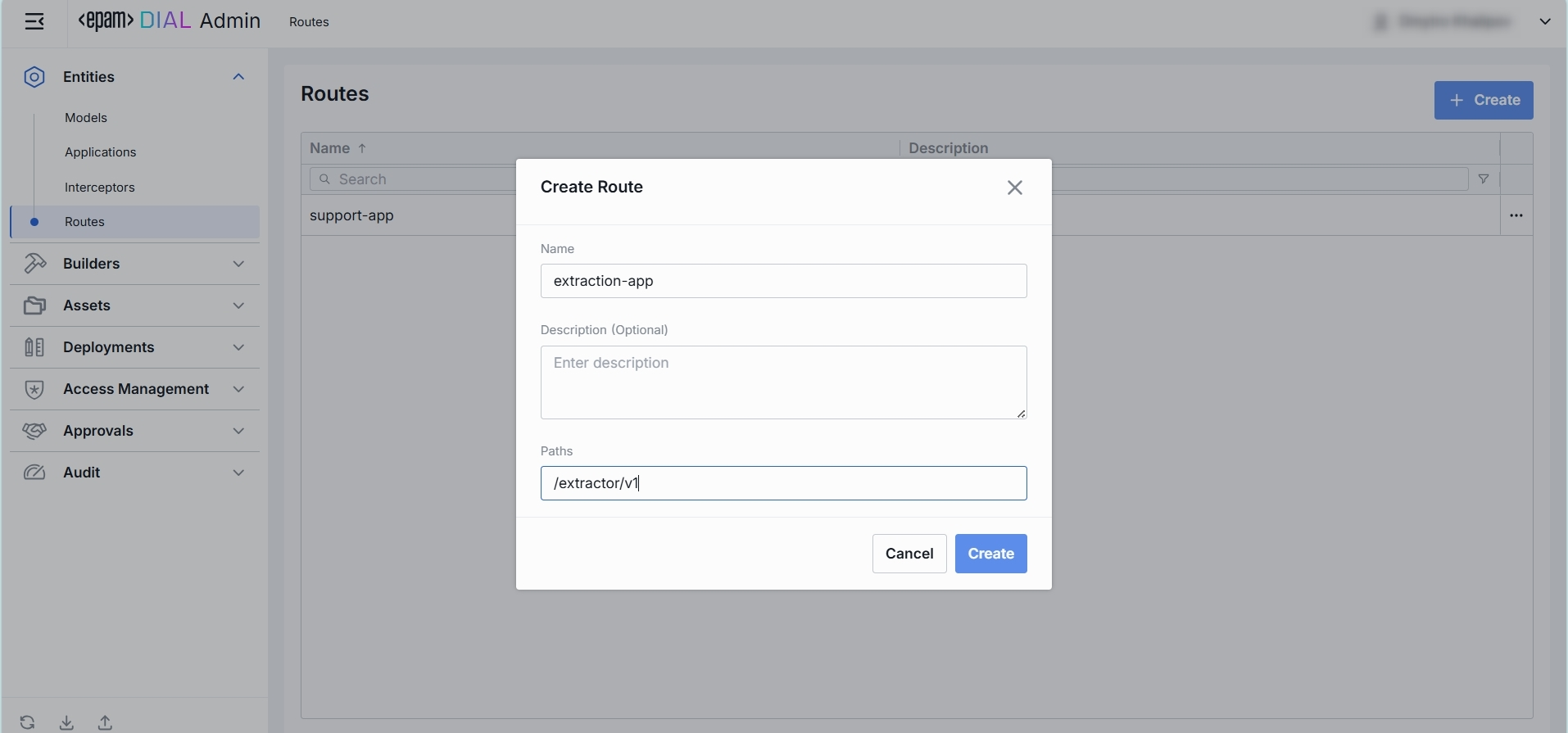

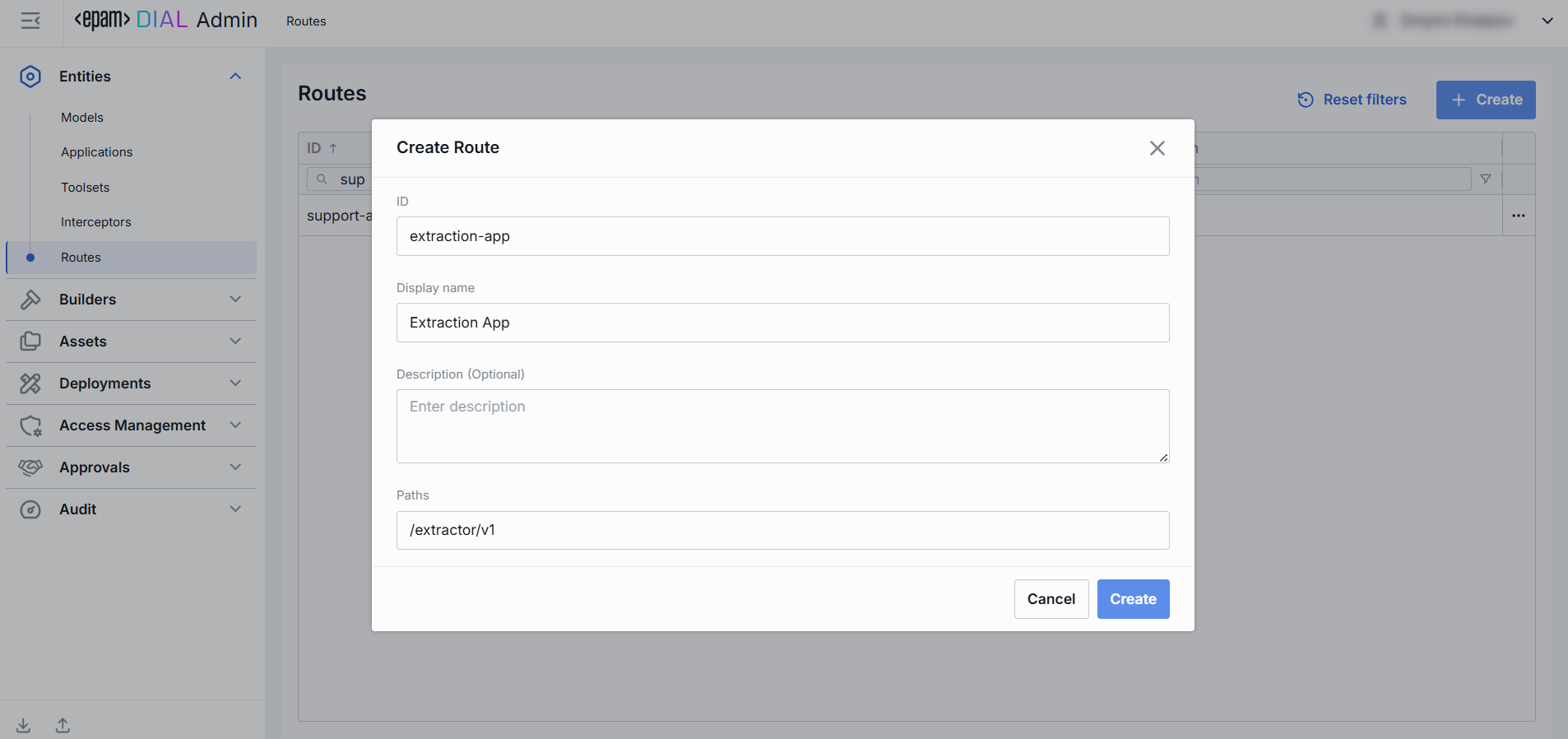

1. Click + Create to invoke the Create Route modal, where you can define rout's parameters:

   Field	Required	Definition
   ID	Yes	This is a unique key under the Routes section of DIAL Admin.
   Display Name	Yes	A user-friendly name of the Route.
   Description	No	A brief free-text description of the Route’s purpose.
   Paths	Yes	URL path(s) pattern this route should match (e.g. /chat, /support/).

2. Once all required fields are filled, click Create. The dialog closes and the new route configuration screen is opened. This entry will appear immediately in the listing once created. It may take some time for the changes to take effect after saving.



Route Configuration

Click any route on the main screen to open the configuration section.

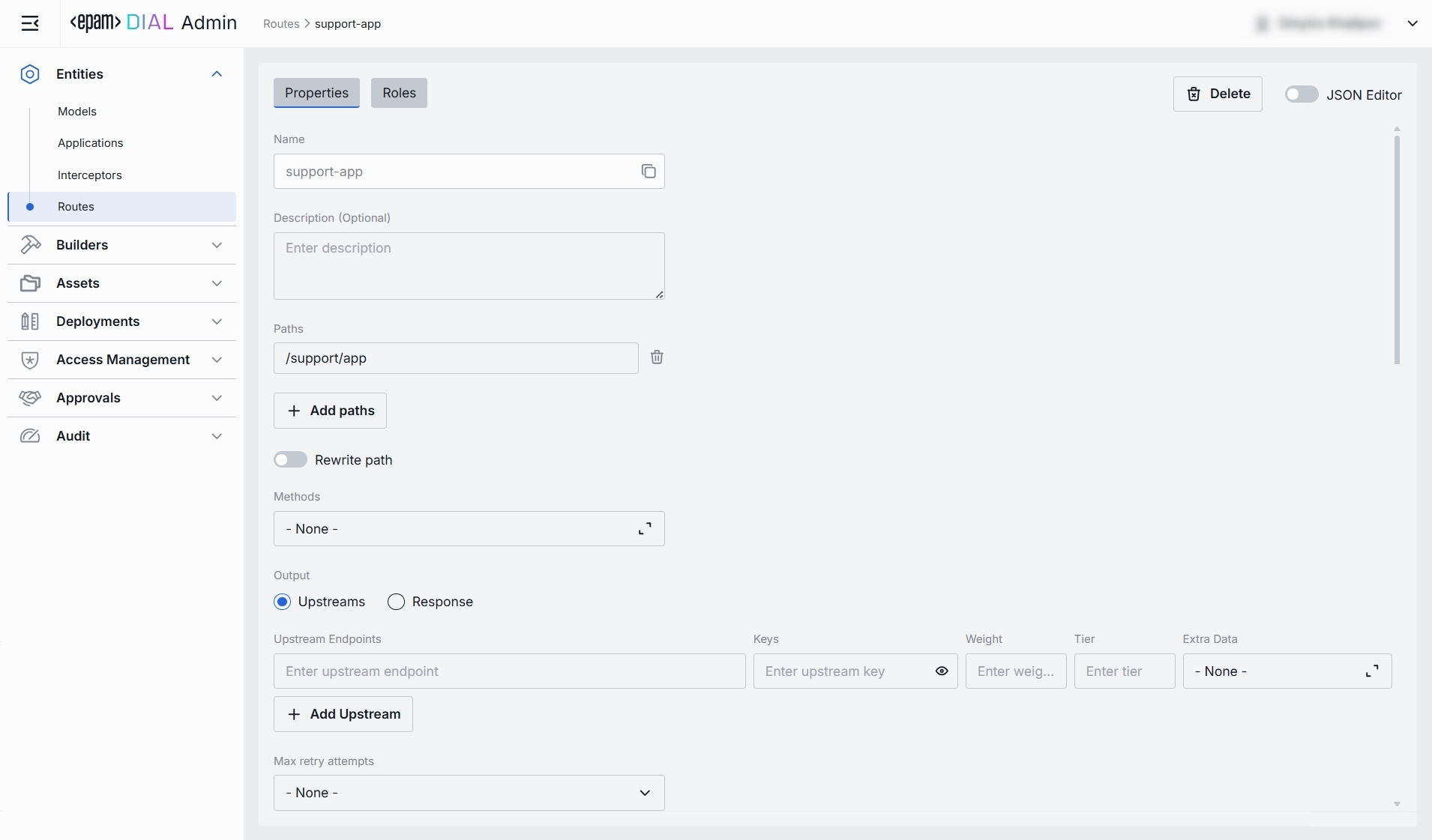

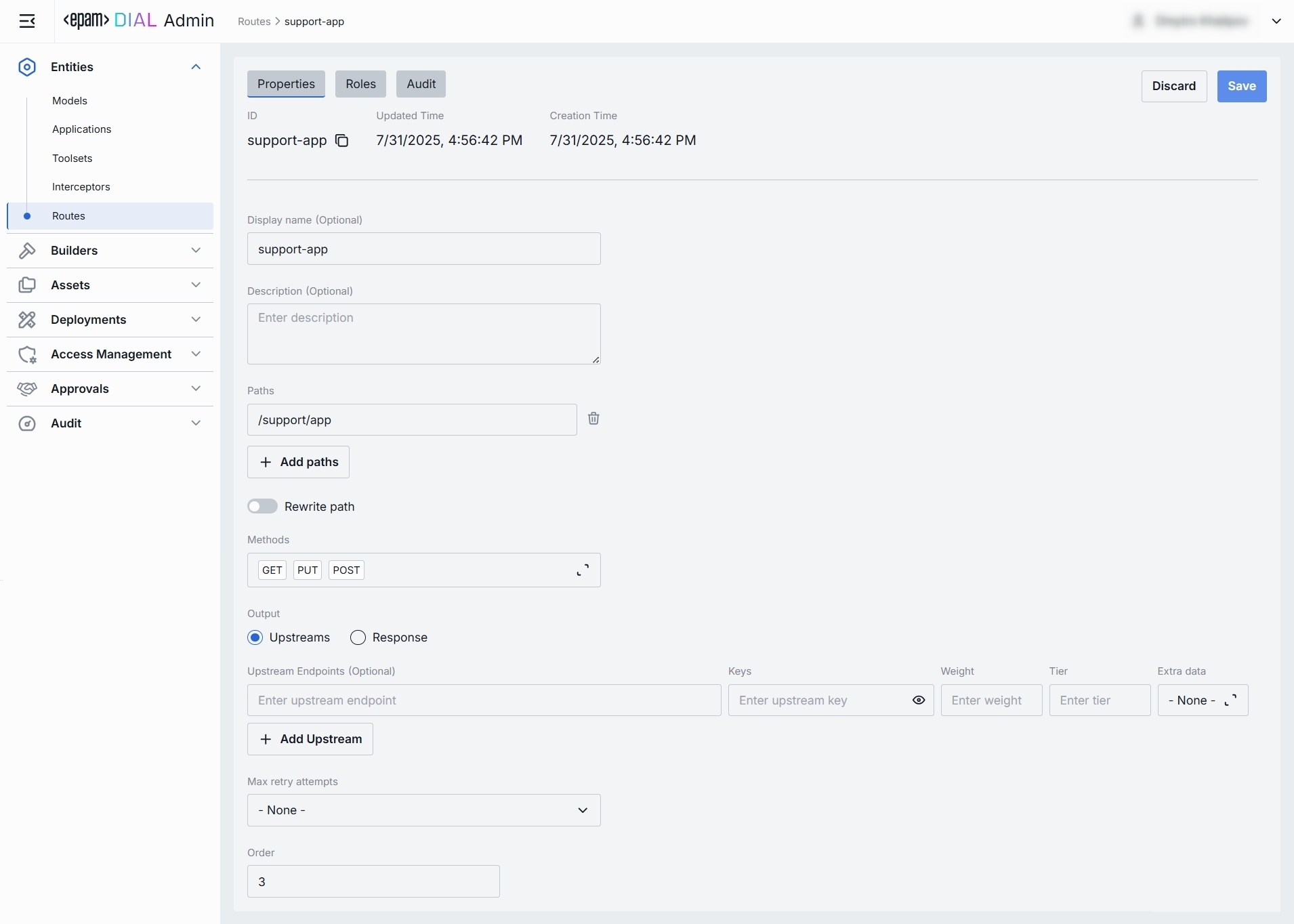

Properties

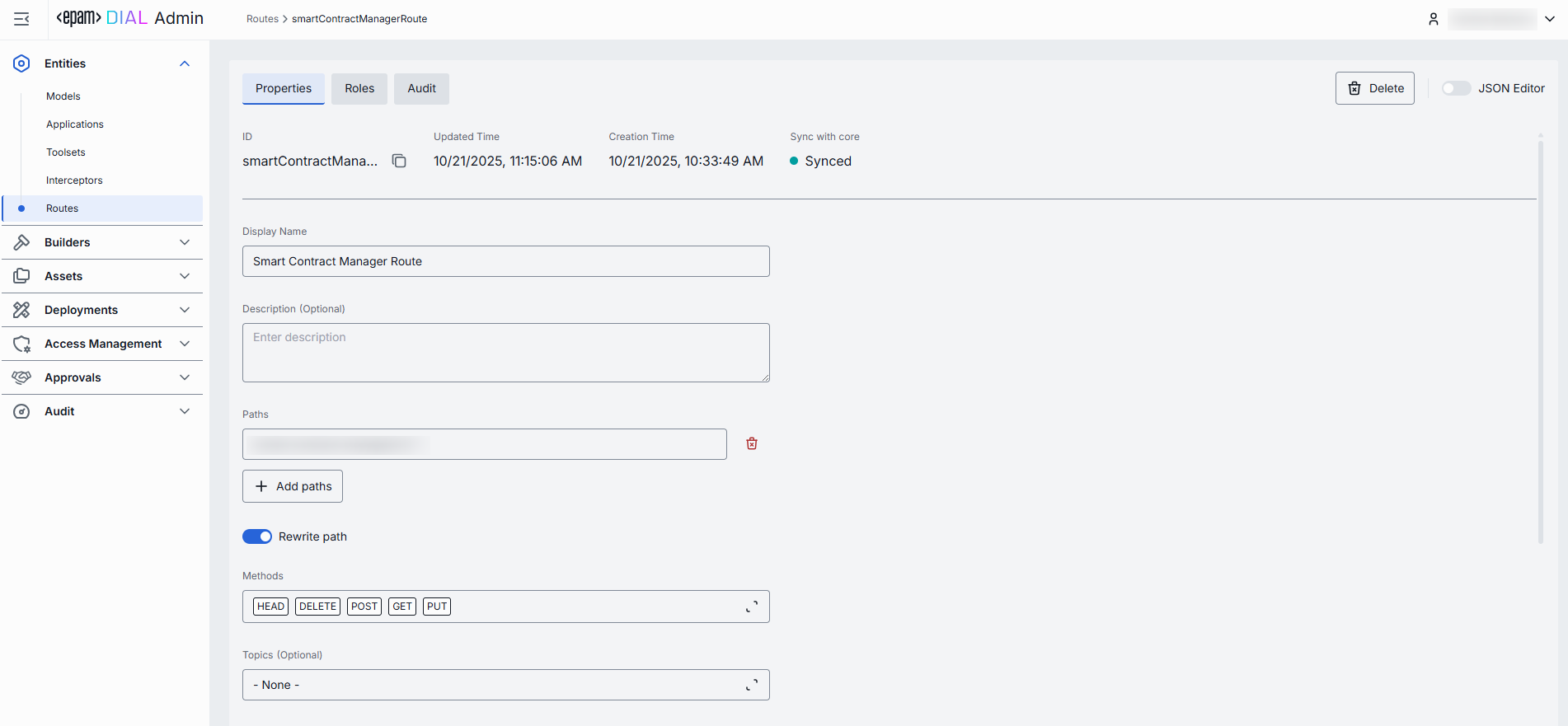

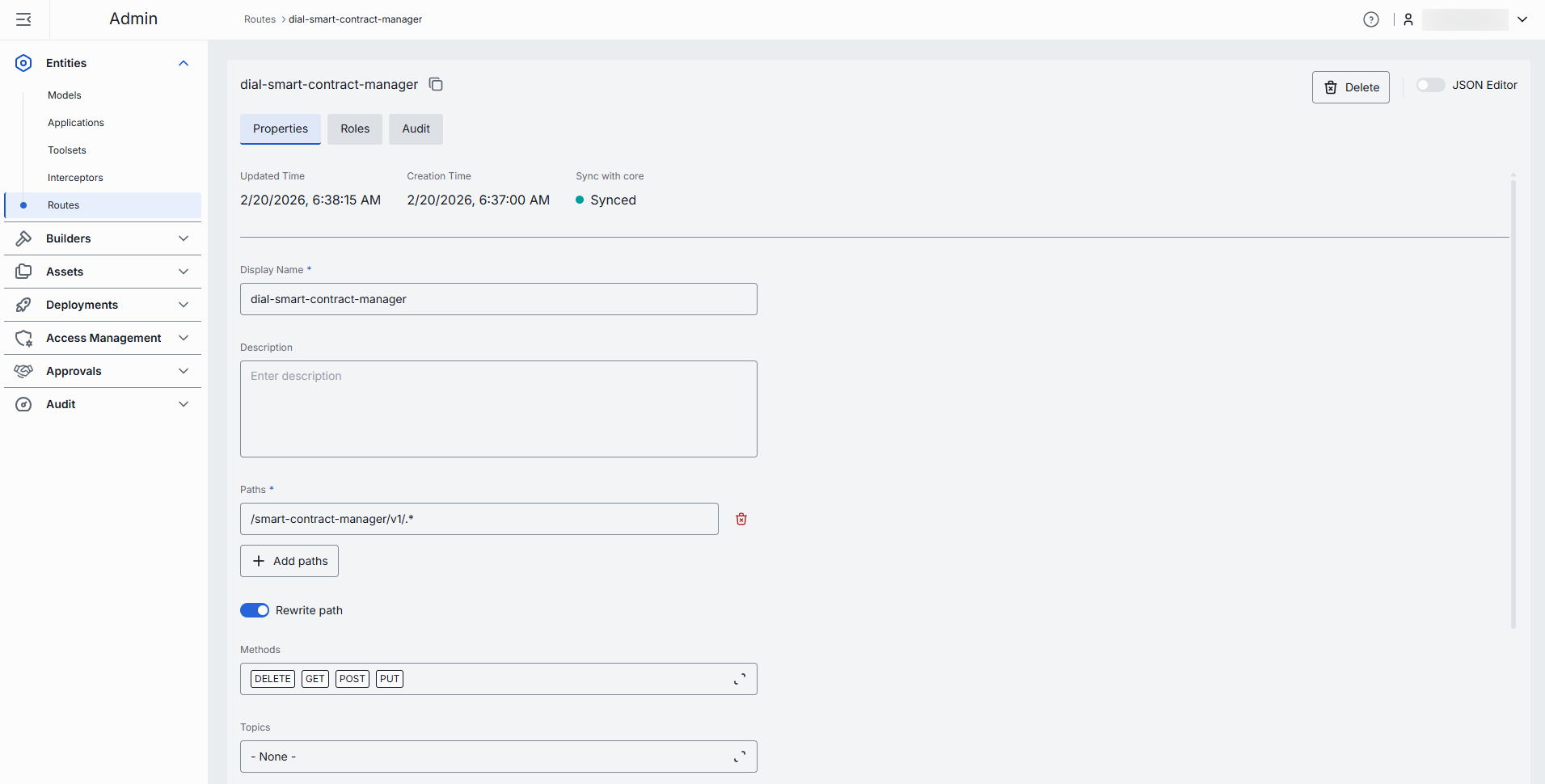

In the Properties tab, you can define the identity and routing behavior.

Basic Identification

Field	Required	Definition
ID	-	This is a unique key under the Routes section of DIAL Admin and dynamic settings of DIAL Core.
Updated Time	-	Date and time when the route's configuration was last updated.
Creation Time	-	Date and time when the route's configuration was created.
Display Name	Yes	A user-friendly name of the Route.
Description	No	Free‐text note about the route’s purpose (e.g. “Primary GPT-4 chat with fallback”).

Request Matching: Paths & Methods

Field	Required	Definition
Paths	Yes	One or more URL path patterns this route should match (e.g. /chat, /support/**). Click + Add paths to register additional patterns. Click the trash icon to remove a path.
Rewrite path	No	Toggle on to strip or transform the incoming path before forwarding upstream. Use when your upstream service expects a different URL structure (e.g. remove /api/v1/routes/chat prefix).
Methods	No	Select one or more HTTP methods (GET, POST, PUT, DELETE, etc.) the route can accept.

Output Mode

Use the output mode to define the response of a Route.

Option	Definition
Upstreams	Add and configure upstreams to forward matching requests to one or more upstream endpoints (Models or Applications). Refer to Upstream Configuration.
Response	Use to return a static, pre-defined payload. Useful for health checks or mock responses. Refer to Response Configuration.

Upstream Configuration

Define where and how to forward requests when the Upstreams output mode is selected.

Field	Required	Definition
Upstream Endpoints	Yes	Full URL(s) of the back-end service(s) to receive the routed request (e.g. https://dial-core.example.com/v1/chat).
Keys	No	API key or token to attach (via header or query) when calling the upstream. Click the eye icon to reveal a masked value.
Weight	No	Relative traffic weight for load balancing among multiple endpoints (higher = more traffic).
Tier	No	Specifies an endpoint group. In a regular scenario, all requests are routed to endpoints with the lowest tier, but in case of an outage or hitting the limits, the next one in the line helps to handle the load. Refer to load balancing to learn more.
Extra Data	No	Select a JSON BLOB from Assets → Files to attach as metadata for the upstream adapter.
+ Add Upstream	—	Append additional endpoints for failover or capacity scaling.

Response Configuration

Define where and how to forward requests when Response mode is selected:

Field	Required	Definition
Status	No	The HTTP status code your route will return (e.g. 200, 404, 503).
Body	No	The exact payload to send in the response body. You can enter plain text or raw JSON.
Max retry attempts	No	(Optional) Determines how many times DIAL will retry the static‐response logic on internal errors.

Additional Parameters

Field	Required	Definition
Order	No	The value of this parameter determines the order within the global routes. The lower value means the higher priority. The value can't be negative integer. The default one is 2^31-1.

Roles

In the Roles tab, you can define user groups that can invoke this route and define rate limits for them.

Roles grid columns:

Column	Description & Guidance
Name	A unique role identifier.
Description	A user-friendly description of the role (e.g., "Admin, Prompt Engineer, Developer").
Tokens per minute	Per Minute tokens limit for a specific role. Blank = no limits. Inherits the default value. Can be overridden.
Tokens per day	Daily tokens limit for a specific role. Blank = no limits. Inherits the default value. Can be overridden.
Tokens per week	Weekly tokens limit for a specific role. Blank = no limits. Inherits the default value. Can be overridden.
Tokens per month	Monthly tokens limit for a specific role. Blank = no limits. Inherits the default value. Can be overridden.
Actions	Additional role-specific actions. Open Roles section in a new tab. Make all restrictions unlimited for the given role

Set Rate Limits

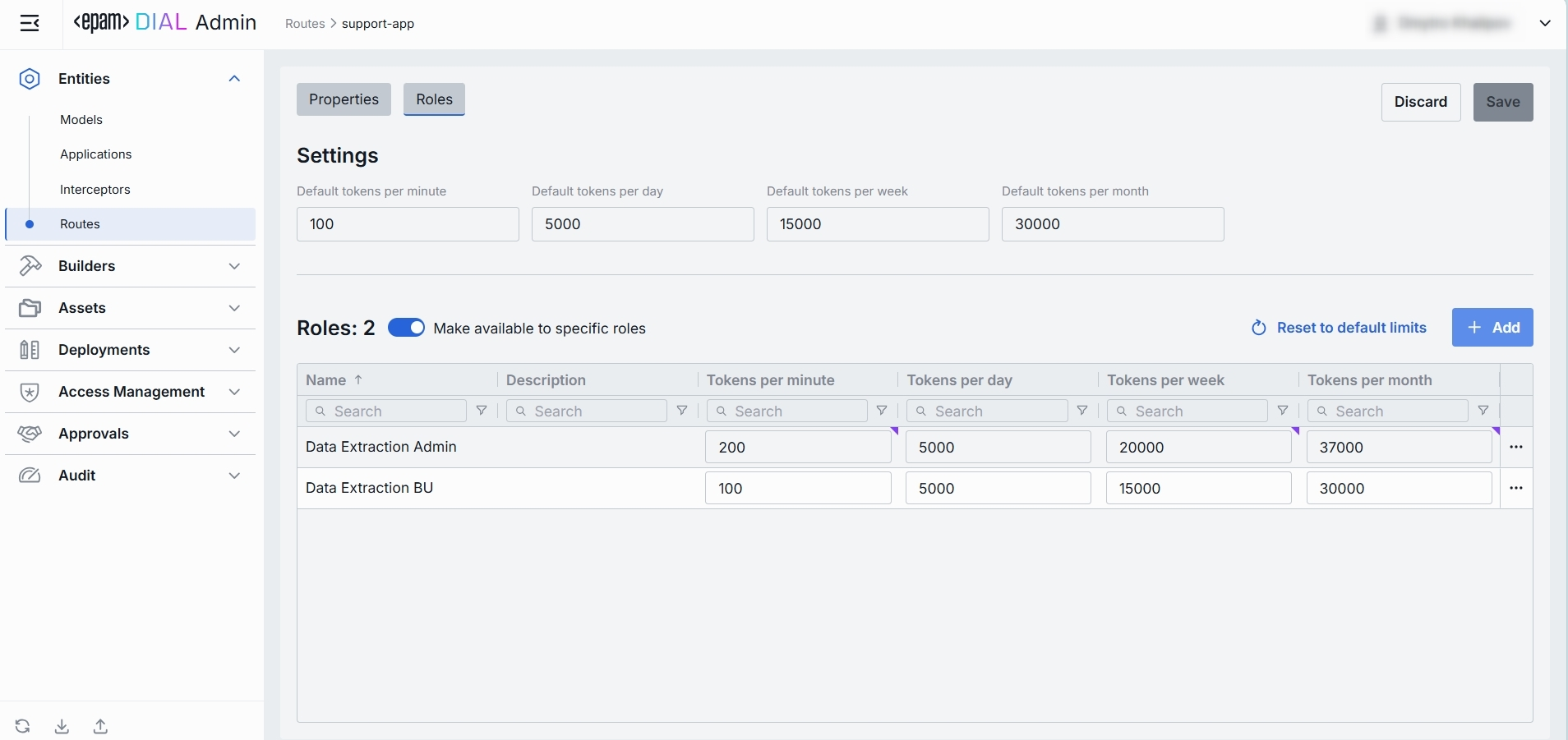

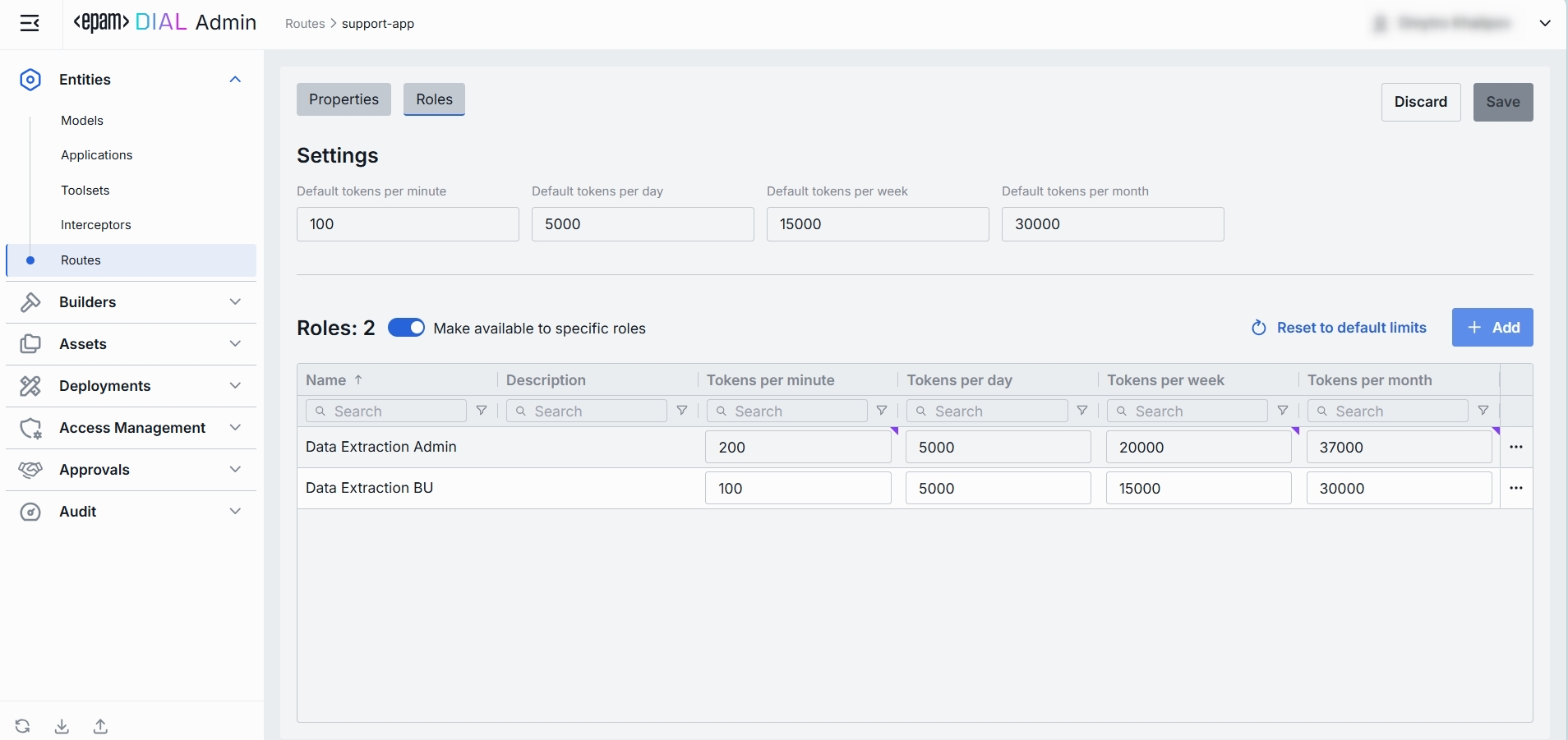

The grid on the Roles screen lists the roles that can access a specific route. Here, you can also set individual limits for selected roles. For example, you can give "Admin" role unlimited monthly tokens but throttle "Developer" to 100,000 tokens/day or allow the "External Partner" role a small trial quota (e.g., 10,000 tokens/month) before upgrade.

To set or change rate limits for a role:

1. Click in the desired cell (e.g., Tokens per day for the “ADMIN”).
2. Enter a numeric limit or leave blank to set no limits. Click Reset to default limits to restore default settings for all roles.
3. Click Save to apply changes.

Default Rate Limits

Default limits are set for all the roles in the Roles grid by default; however you can override them for any role.

Field	Description
Default tokens per minute	The maximum tokens any user may consume per minute if no role-specific limit applies.
Default tokens per day	The maximum tokens any user may consume per day if no role-specific limit applies.
Default tokens per week	The maximum tokens any user may consume per week if no role-specific limit applies.
Default tokens per month	The maximum tokens any user may consume per month if no role-specific limit applies.

Role-Specific Access

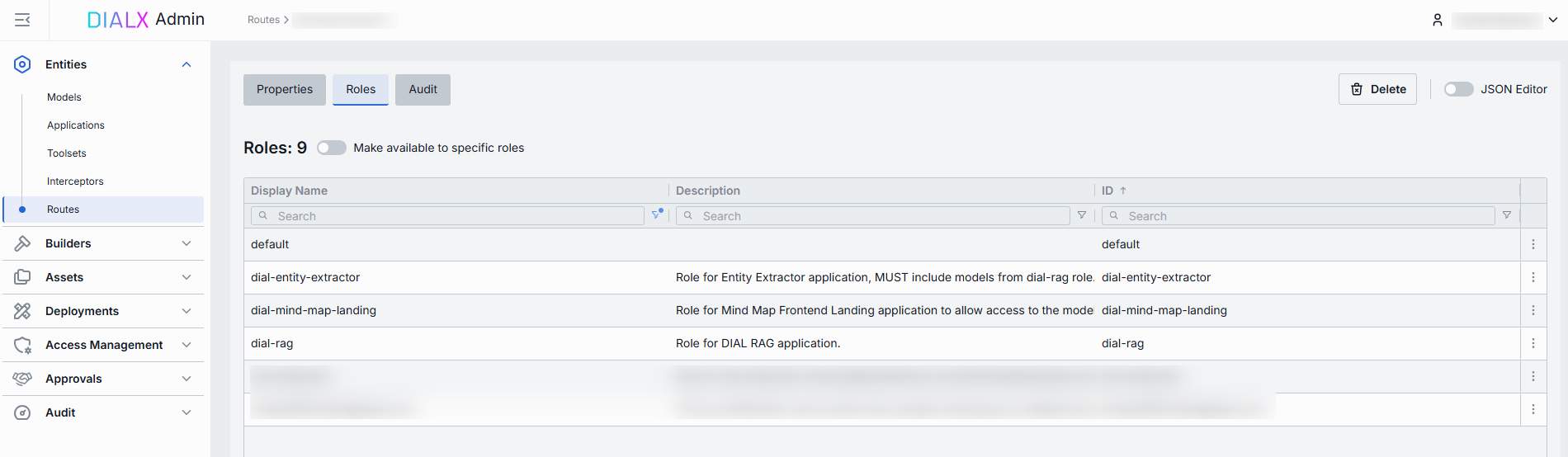

Use Make available to specific roles toggle to define access to the route:

• Off: Route is accessible by any authenticated user. All existing roles are in the grid.
• On: Route is restricted - only the roles you explicitly add to the grid below can use it.

Add

You can add a role only if Make available to specific roles toggle is On.

1. Click + Add (top-right of the Roles Grid).
2. Select one or more roles in the modal.
3. Confirm to insert them into the table.

Remove

You can remove a role only if Make available to specific roles toggle is On.

1. Click the actions menu in the role's line.
2. Choose Remove in the menu.

Audit

Activities

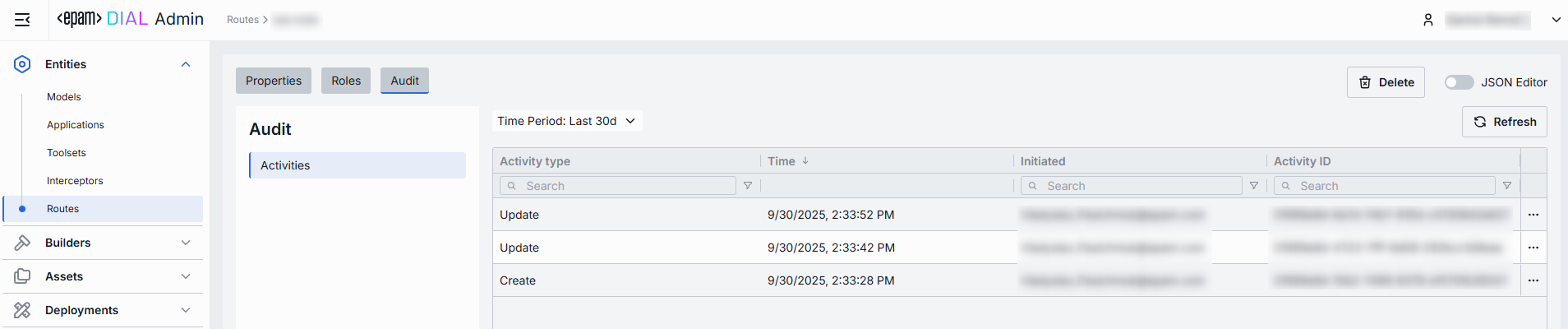

The Activities section provides a detailed insight into all changes made to the selected route.

This section mimics the functionality available in the global Audit → Activities menu, but is scoped specifically to the selected route.

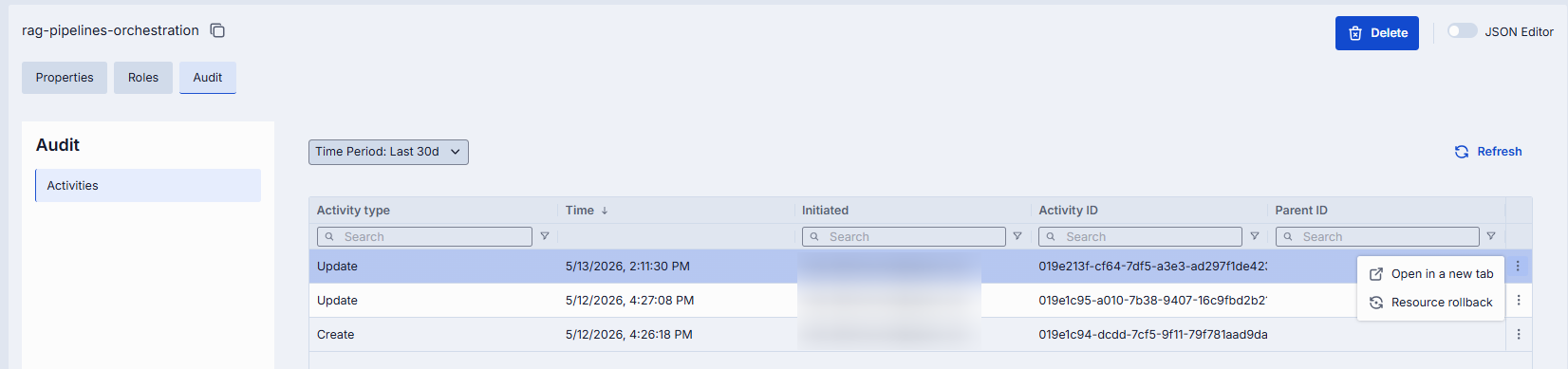

Activities List Table

Field	Definition
Activity type	The type of action performed (e.g., Create, Update, Delete).
Time	Timestamp indicating when the activity occurred.
Initiated	Email address of the user who performed the activity.
Activity ID	A unique identifier for the logged activity, used for tracking and auditing.
Actions	Available actions: - View details: Click to open a new screen with activity details. Refer to Activity Details to learn more. - Resource rollback: click to restore a previous version. Refer to Resource Rollback for details.

Activity Details

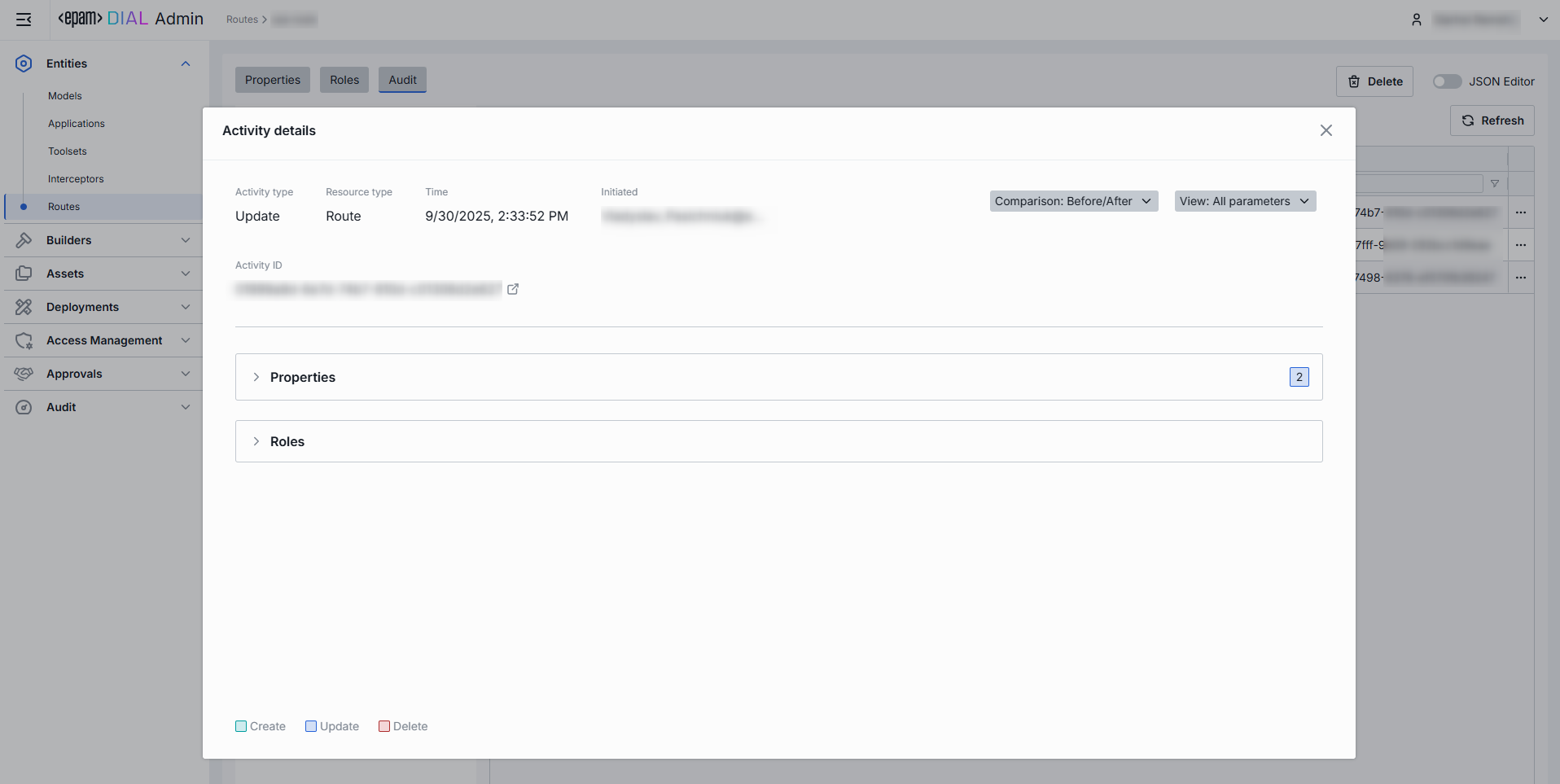

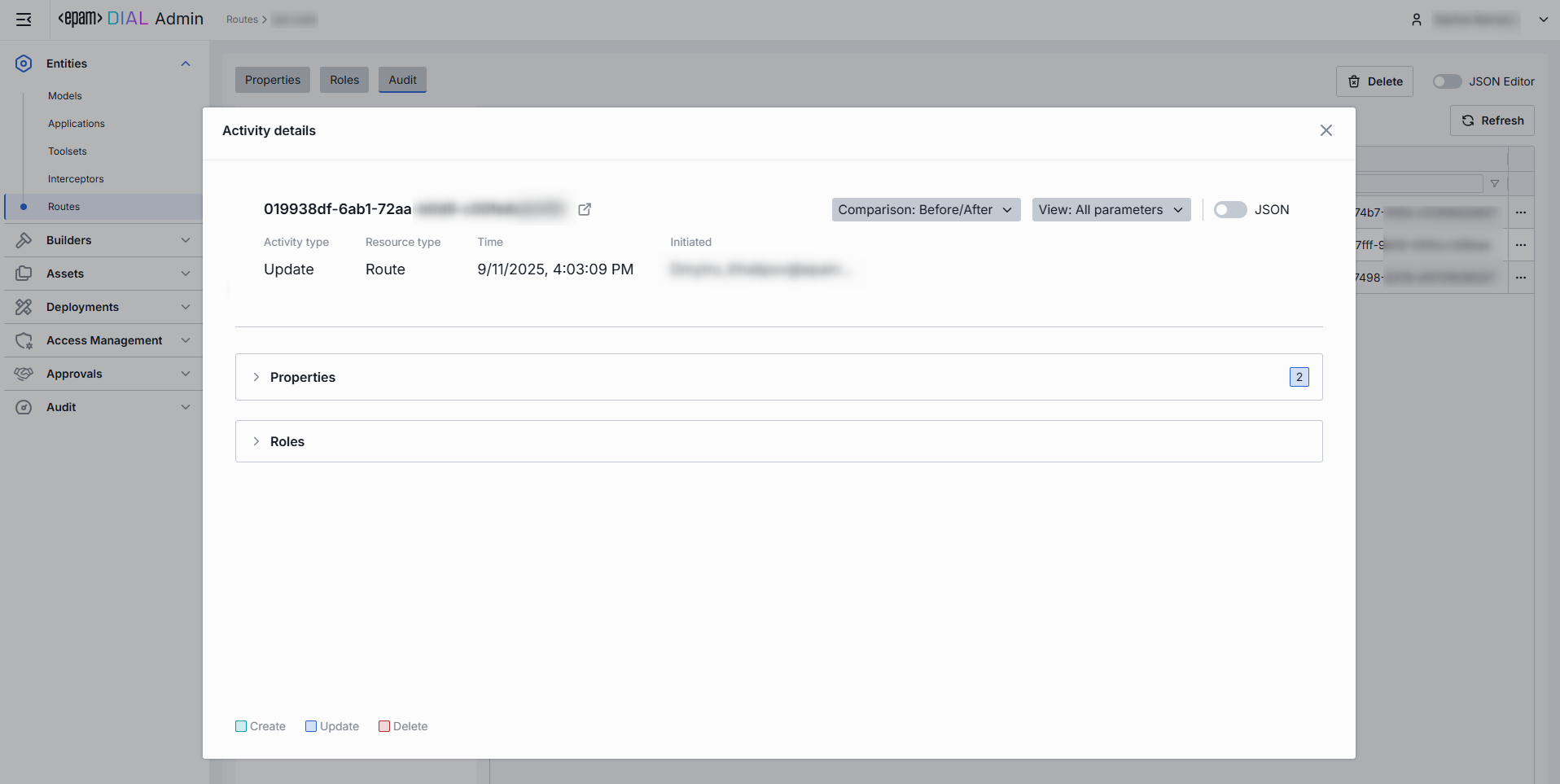

The Activity Details view provides a detailed snapshot of a specific change made to a route.

To open Activity Details, click on the three-dot menu (⋮) at the end of a row in the Activities grid and select “View Details”.

Element/Section	Description
Activity type	Type of the change performed (e.g., Update, Create, Delete).
Time	Timestamp of the change.
Initiated	Identifier of the user who made the change.
Activity ID	Unique identifier for the specific activity tracking.
Comparison	Dropdown to switch between showing all parameter or changed only.
View	Dropdown to switch for selection between Before/After and Before/Current state.
Parameters Diff	Side-by-side comparison of toolset fields values before and after the change. Color-coding is used to indicate the operation type (Update, Create, Delete).

Resource Rollback

Use Resource Rollback to restore the previous version of the selected activity. A rollback leads to generation of a new entry on the audit activity screen.

JSON Editor

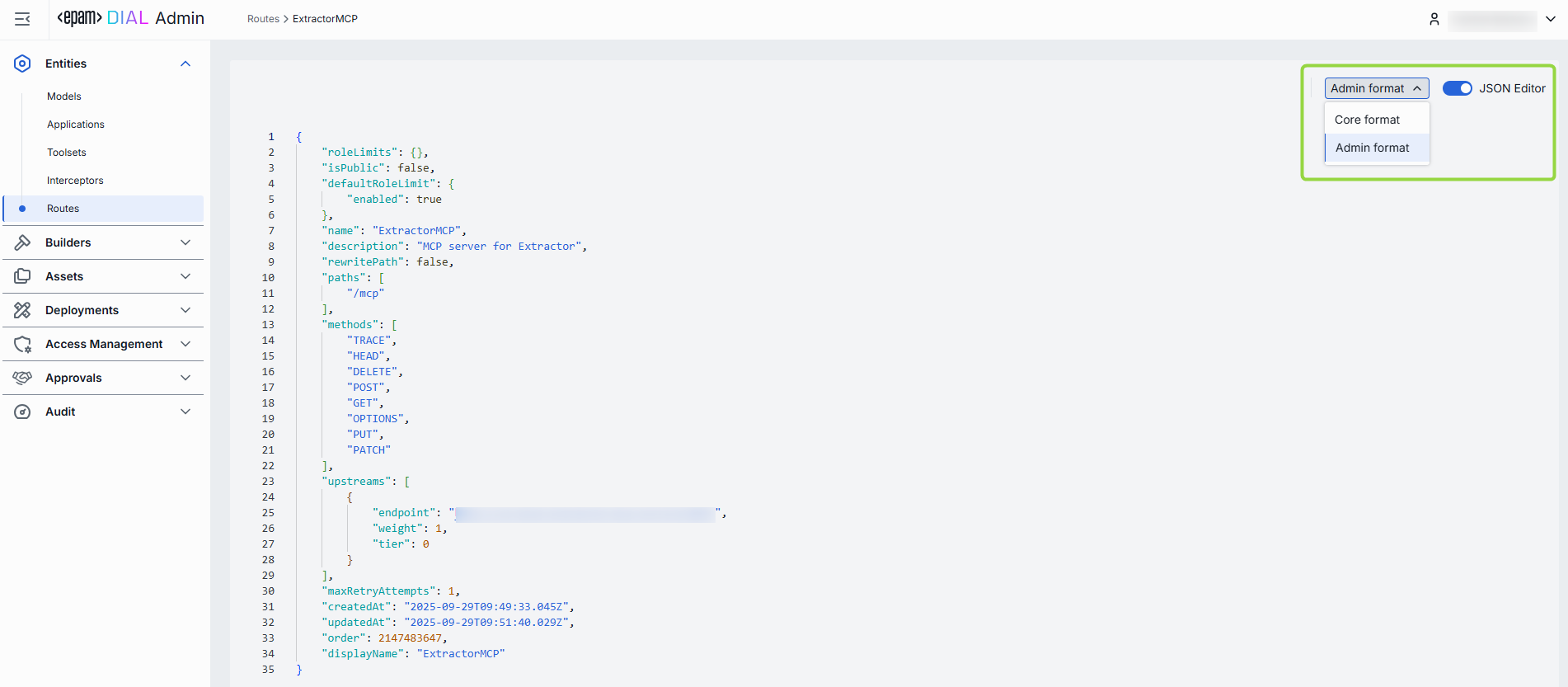

Use the JSON Editor toggle to switch between the form-based UI and raw JSON view of the route’s configuration. It is useful for advanced scenarios of bulk updates, copy/paste between environments, or tweaking settings not exposed in the form UI—you can switch to the JSON Editor on any route configuration page.

Switching to the JSON Editor

1. Navigate to Entities → Routes, then select the Route you want to edit.

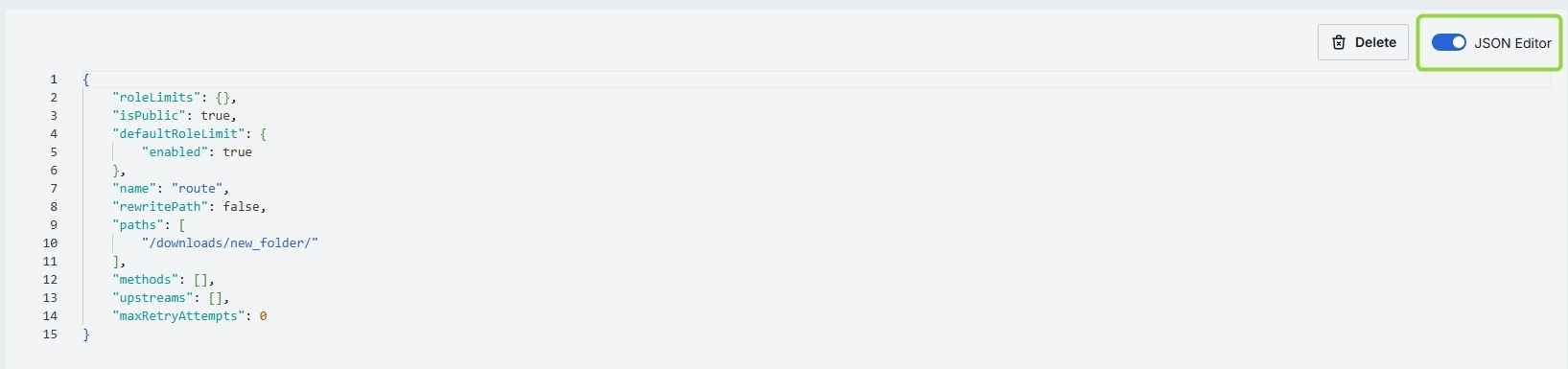

2. Click the JSON Editor toggle (top-right). The UI reveals the raw JSON.

TIP: You can switch between UI and JSON only if there are no unsaved changes.

Delete

Use the Delete button in the Configuration screen toolbar to permanently remove the selected route.
